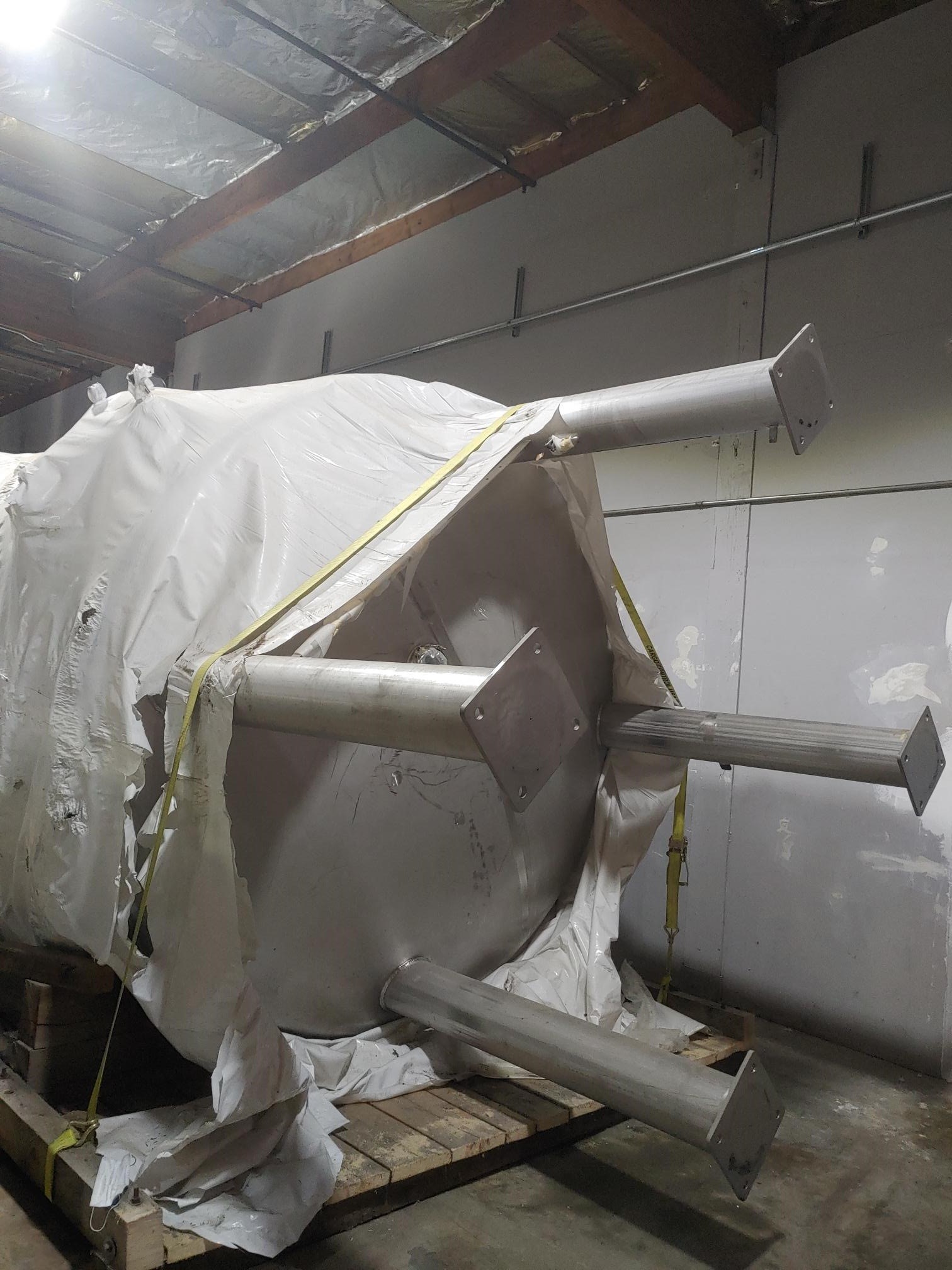

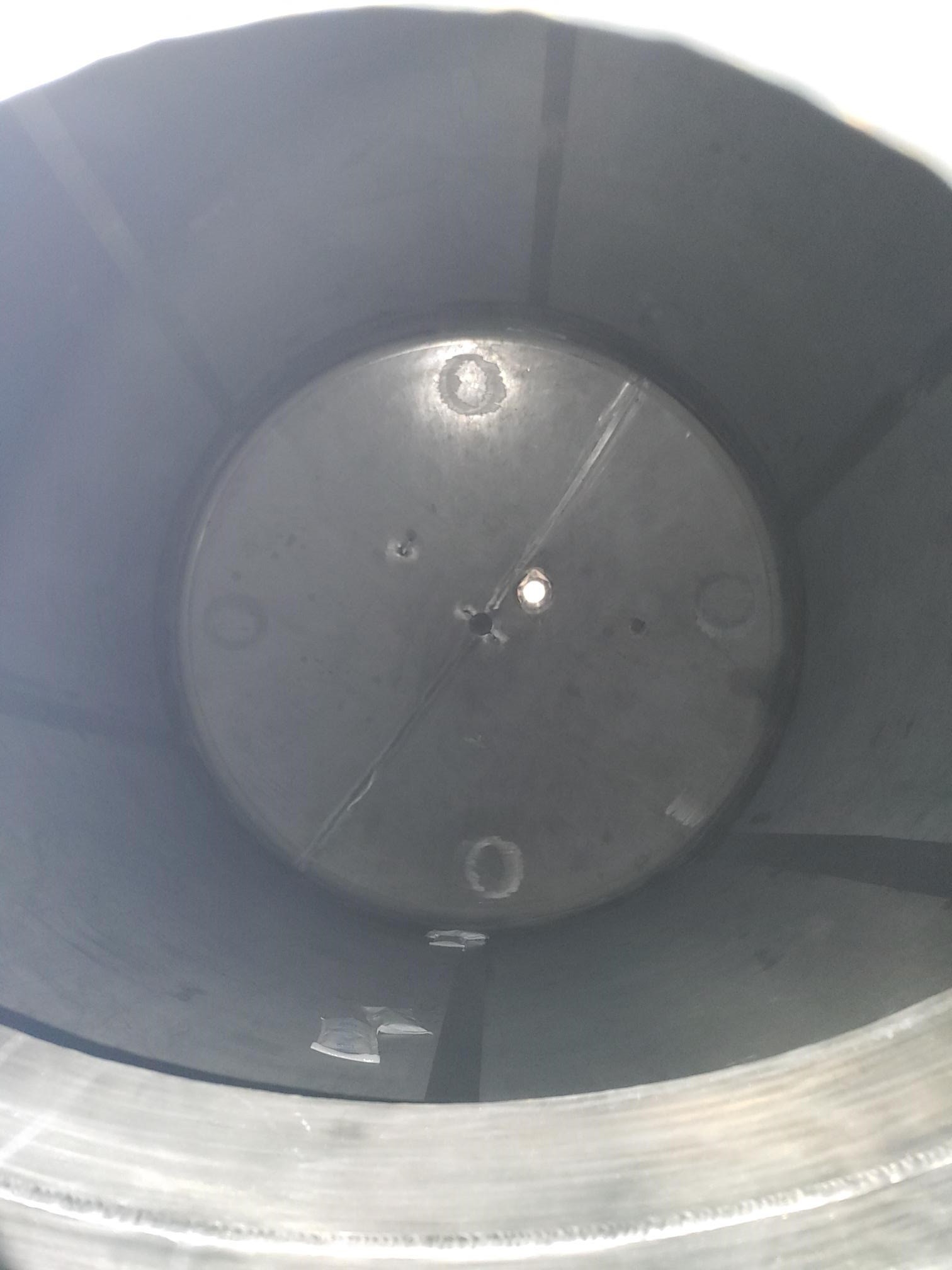

2014 ABC Actini 20,000 liter Biowaste holding tank single wall non-jacketed brand new Tank

All Contact Product: 316 L (Weld Wire: 317L S/S)

Non- Product contact: 304 L (Weld wire: 317L S/S)

Closure Bolting: Manway Clamps: Black Thermoplastic Kknobs w/Monel Inserts

Mis. Bolting Clamps: 304 S/S

Volume: 20,000 Liters.

Internal Design Pressure: 50 psig

External Design Pressure: 15 psig

Design Temp: -20 deg./350F

Hydrotest Pressure: 75psig

Spray Ball Flow Rate: 43.64 gpm [165.2IPM]@25psig [1.72barg]

Weight Empty: 10,675 lbs (4,842 kg)

Full of water: 54,550 lbs (24,743 kg)

Hight: 236.84″x 108″
