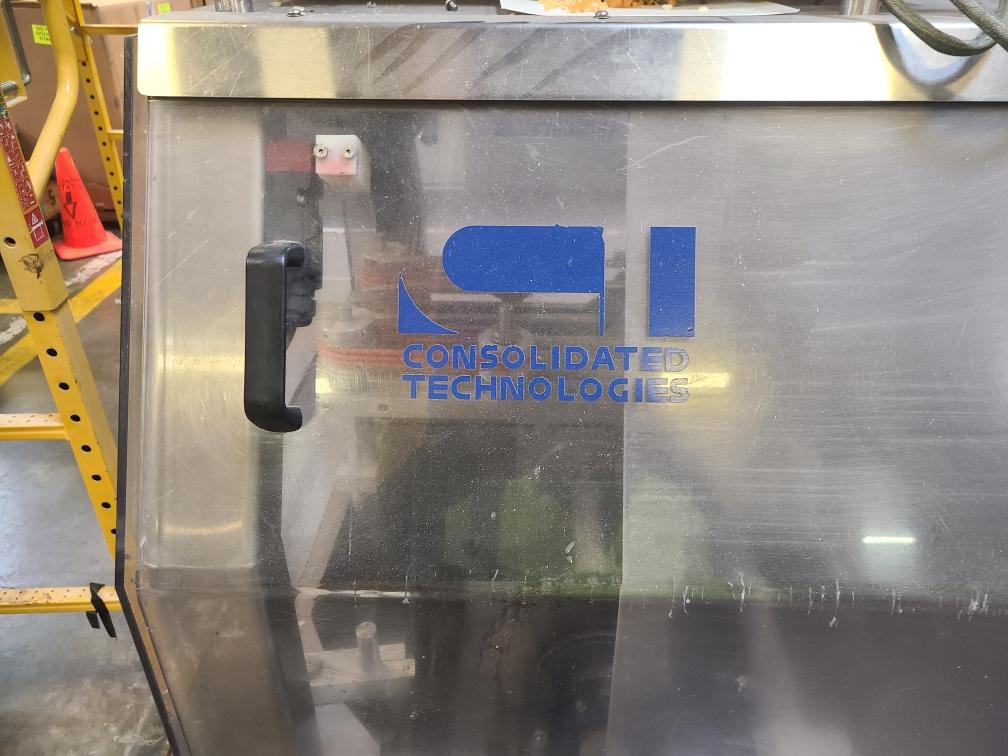

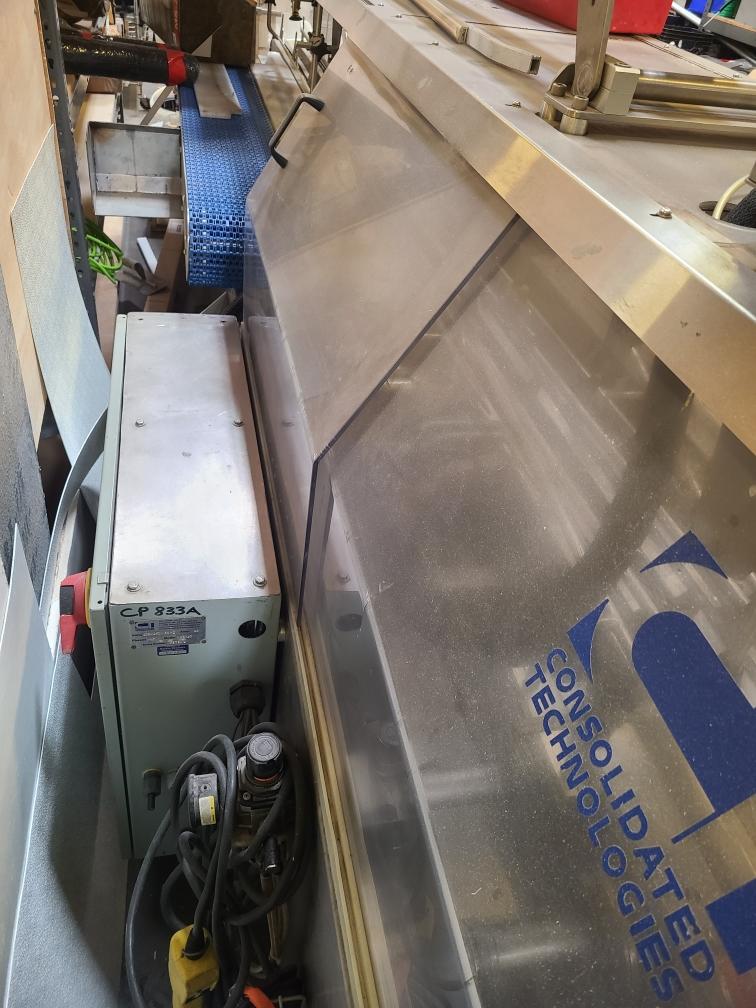

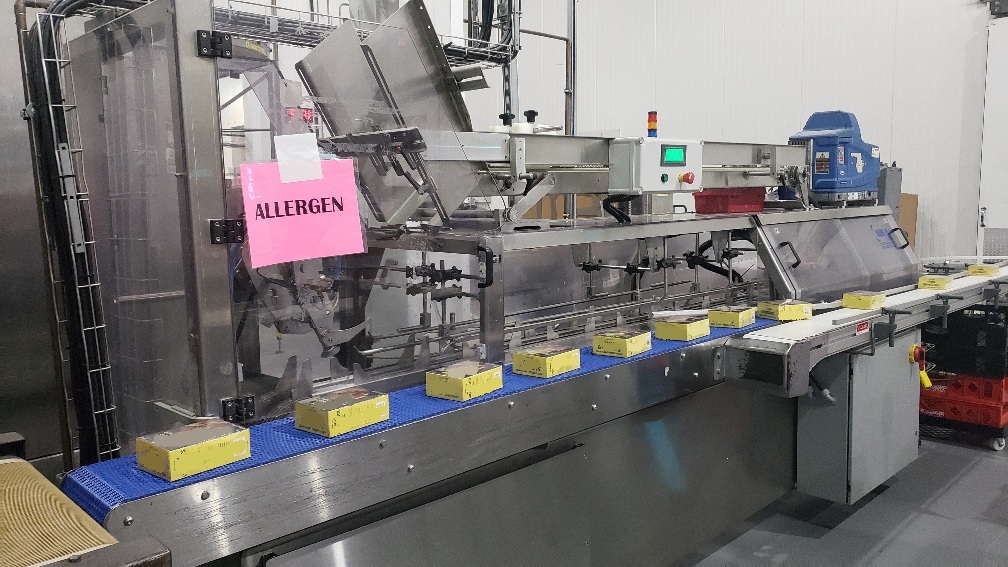

Used 2009 Consolidate Tech HC 120 Horizontal Servo Cartoner. The machine was just taken out of production due to a product/cartoner design change.

• The HC 120 is a high quality cartoner that erects, closes, and glues cartons. It requires manual loading of product into the cartons.

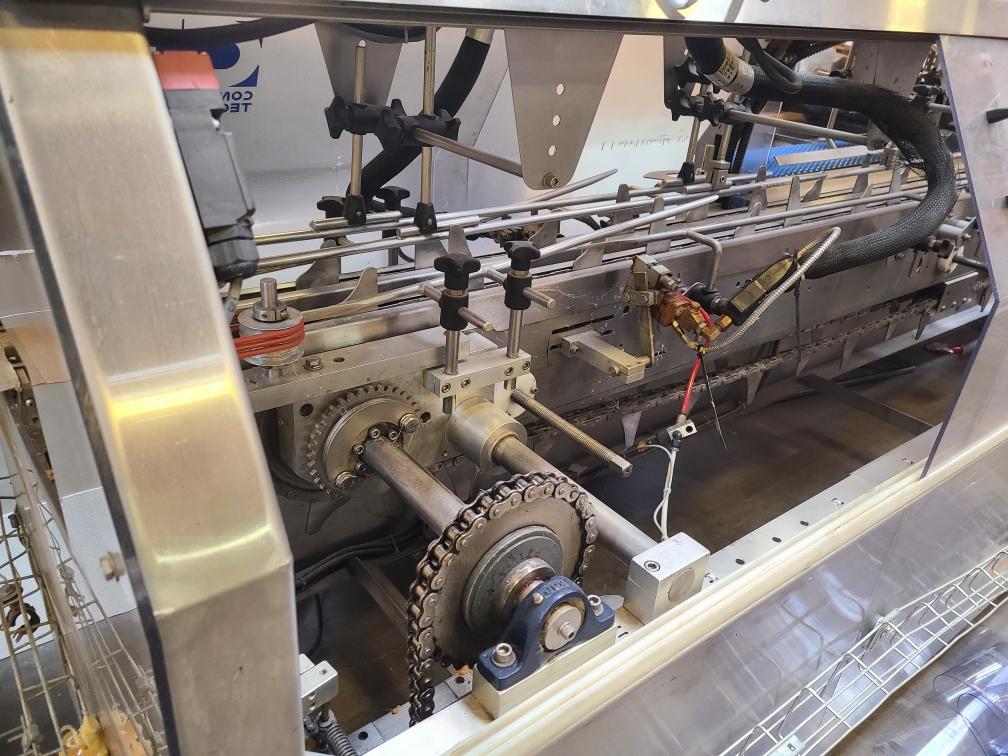

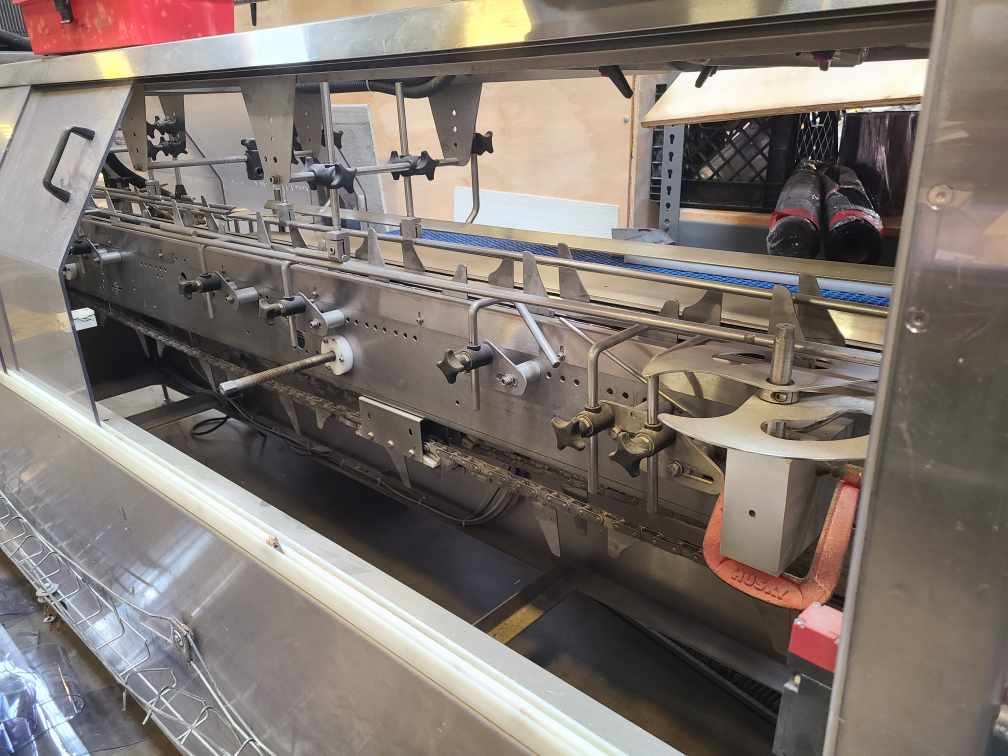

• The HC-120 relies on mechanical synchronization of the various moving components that perform the process of erecting and closing a carton to reduce setup time.  Electronic setup parameters are saved and recalled, in the form of box recipes, using the HMI (Human Machine Interface).  The values are loaded into the PLC (Programmable Logic controller) program by the simple entry of a box number. These parameters will include pneumatic and glue functions that are controlled in relation to the position of cartons on the cartoner chains enabling a wide range of throughput rates with minimal or no parameter adjustment.
• Up to 60 cartons per minute
• Touchscreen interface for setup and diagnostics
• Sensor failure/obstruction detection
• Position control of pneumatics and glue
• Glue system monitoring
• Intermittent or continuous motion
• Constructed of stainless steel and anodized aluminum
• Adaptable to a wide range of products
• Rotary carton feed
• JOG mode pendant
• Polycarbonate (Lexa) safety covers
• Full safety interlocks
• Sensor failure obstruction detection
• Product jam detection
• Min/Max carton sizes:
  • Length: 2″ – 12.5″
  • Height” 1″ – 4″
  • Depth: 5″ – 12″
